Helicopter Dynamics
Helicopter Vortex Ring State (Settling With Power)
FAA Ref: FAA-S-ACS-15 Area VIII Task E (Vortex Ring State (VRS))
Scenario & Physics Summary
A hazardous aerodynamic condition where a helicopter settles into its own downwash, creating massive recirculation vortices and rapid sink rate.
Interactive 3D Visual Plates & Scenario Media

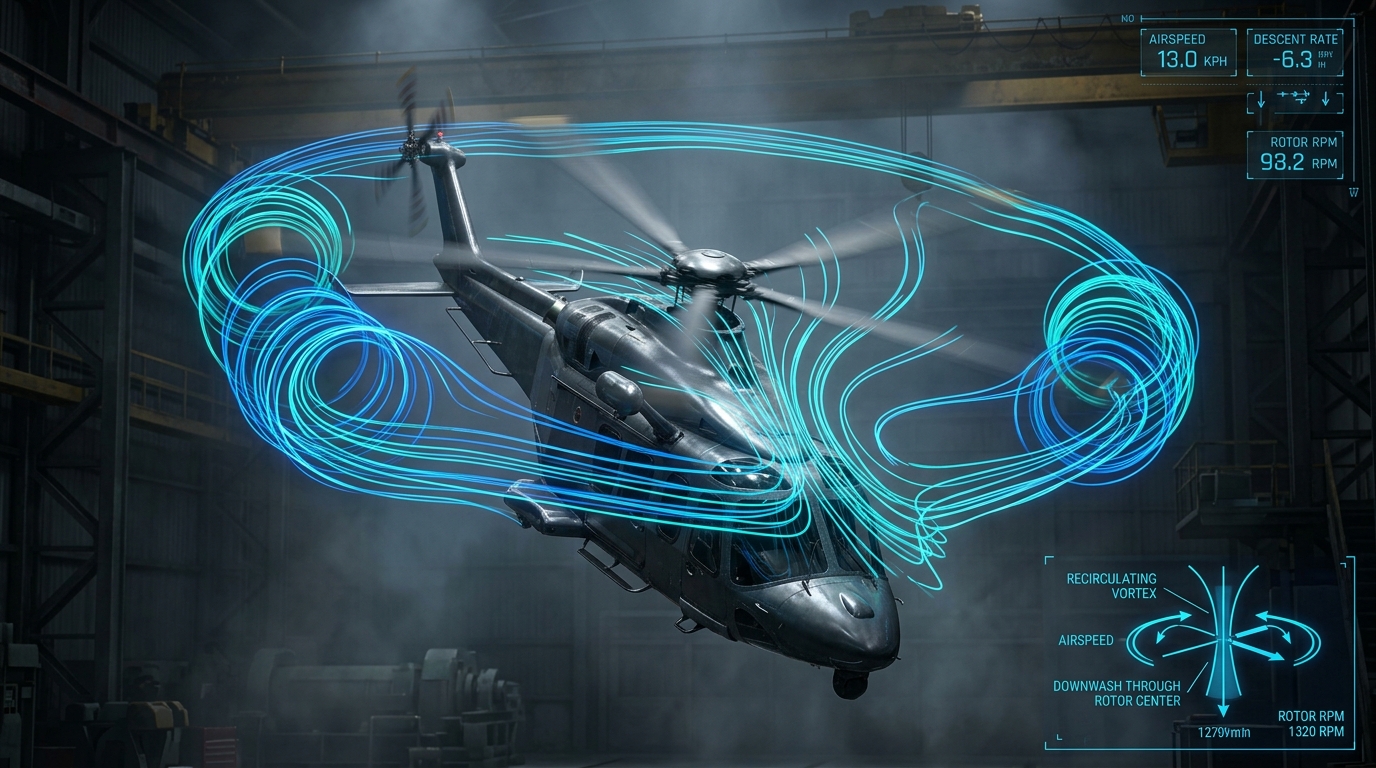

Plate 1: Helicopter Vortex Ring State (Settling With Power)
Plate 2: Helicopter Vortex Ring State (Settling With Power)

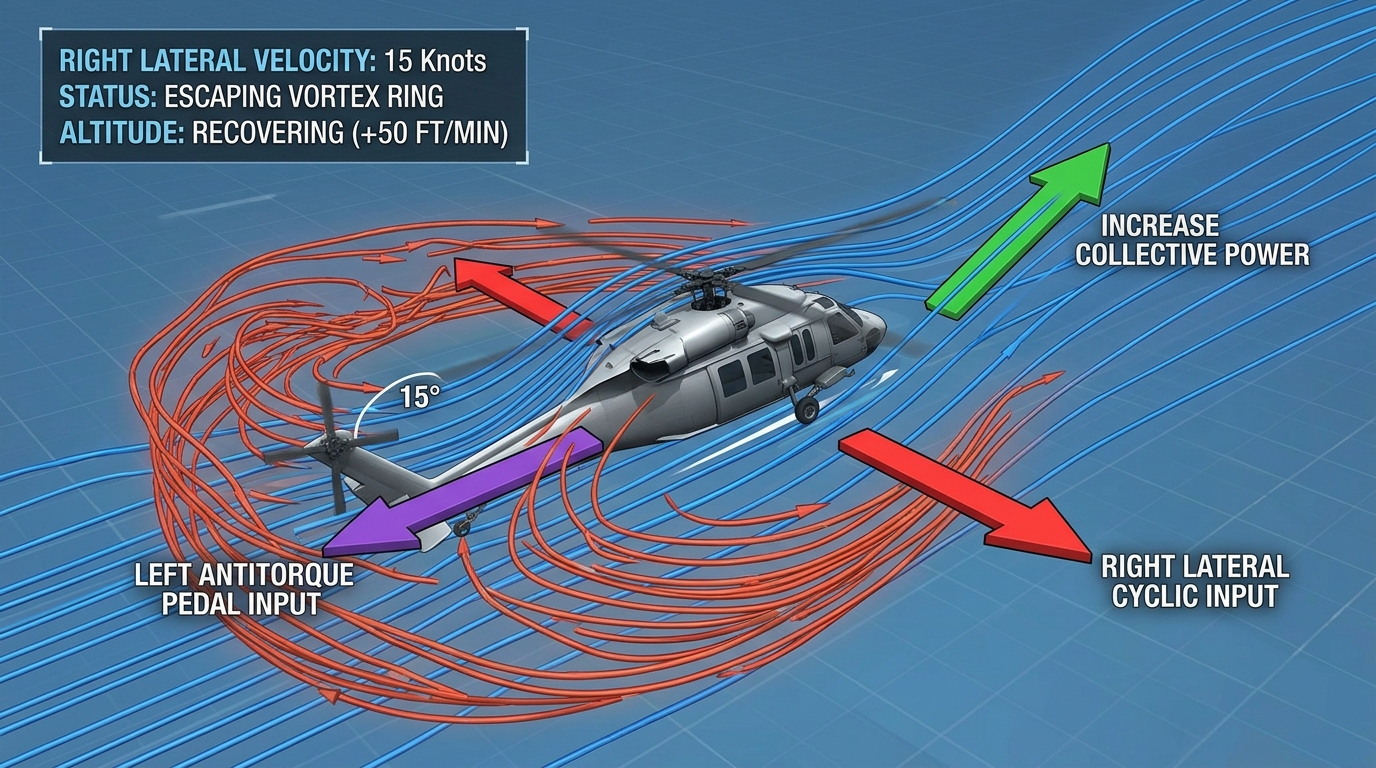

Plate 3: Helicopter Vortex Ring State (Settling With Power)

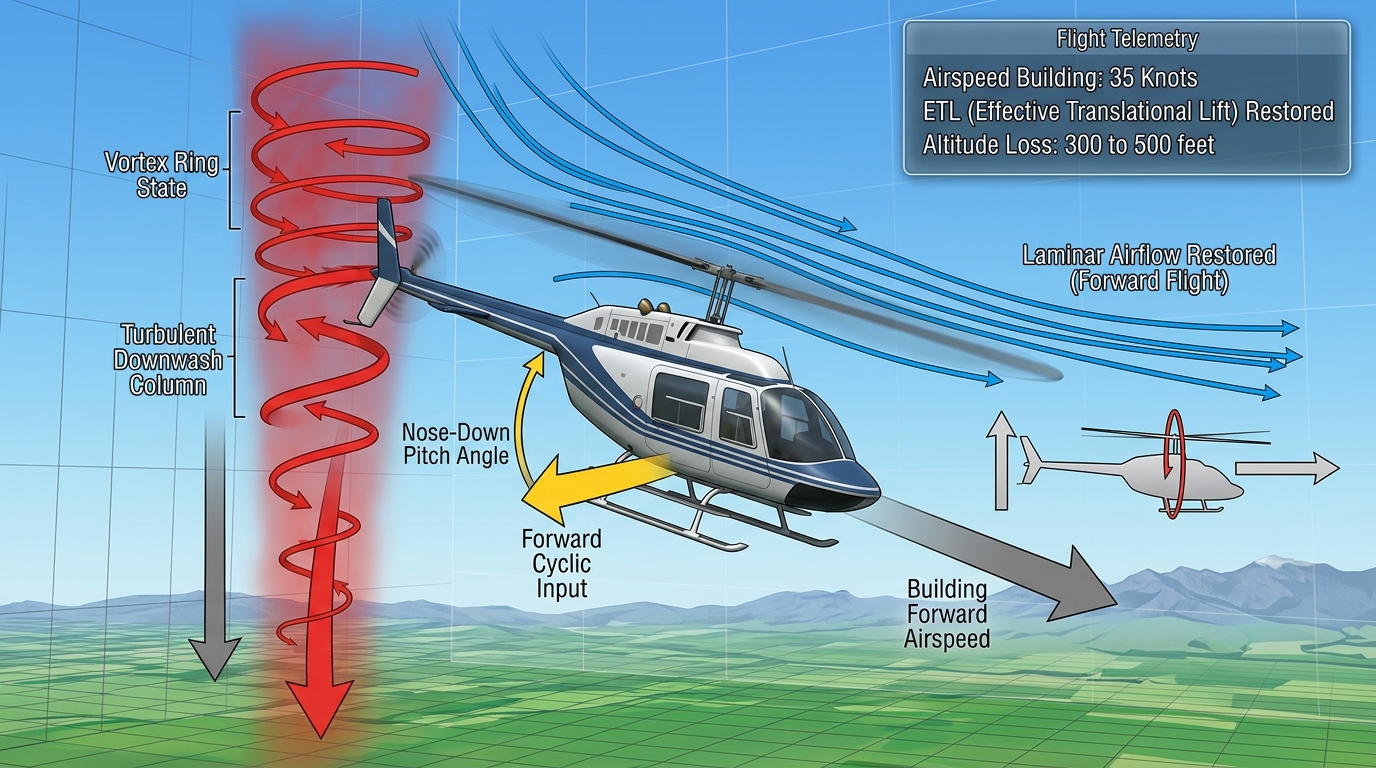

Plate 4: Helicopter Vortex Ring State (Settling With Power)
Aerodynamic & Operational Physics
- Three criteria required: 1) Descent rate > 300 ft/min; 2) Airspeed < 30 knots (steep descent); 3) Power applied (20-100%).
- Rotor blade tips re-ingest downward air vortices, causing total loss of effective lift.
- Pulling collective WORSENS descent rate from 2,000 to 6,000 ft/min!
- Recovery: Vuichard Technique (cross-controls: cyclic right + left pedal) OR Traditional (forward cyclic to gain airspeed > 30 kts).
FAA Exam Gotcha Alert
FAA Exam Trap: Pulling collective during Vortex Ring State accelerates sink rate. You MUST move cyclic to clean air or execute Vuichard recovery.
Frequently Asked Questions & Exam Explanations
What are the three conditions required to enter Vortex Ring State?
1) Airspeed below 30 knots; 2) Rate of descent greater than 300 ft/min; 3) Engine power applied.
